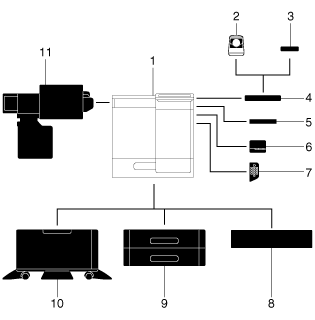

Optional Components

1

Main unit

Prints documents sent from a computer.

This unit is referred to as "this machine" or "the main unit" in the manual.

2

Authentication Unit AU-102

Performs user authentication by scanning vein patterns in the finger.

To install the Authentication Unit AU-102, the Local Interface Kit EK-P08 or Local Interface Kit EK-P09 is required in addition to the Working Table WT-P03.

This unit is referred to as Biometric Authentication Unit in the manual.

3

Authentication Unit AU-201S

Performs user authentication by scanning information recorded on the IC card or NFC-compatible Android terminal.

To install the Authentication Unit AU-201S, the Local Interface Kit EK-P08 or Local Interface Kit EK-P09 is required in addition to the Mount Kit MK-P08.

This unit can also be installed on the Working Table WT-P03.

This unit is referred to as IC Card Authentication Unit in the manual.

4

Working Table WT-P03

Provides an area to temporarily place an original or other materials. This is also used when the Authentication Unit AU-102 or Authentication Unit AU-201S is installed or when Finisher FS-P03 is attached.

5

Keyboard Holder KH-P02

Install this holder to use an external keyboard.

For details on external keyboards, contact your service representative.

6

Finisher FS-P04

Staples the printed sheets.

For staples, use Staple Kit SK-501.

For details on how to use the Finisher FS-P04, refer to Here.

7

Keypad KP-P03

It is equipped on the side of the Control Panel.

Allows you to operate this machine or enter a number by using hardware keys.

8

Paper Feed Unit PF-P25/PF-P22

Adjust the height of this machine to suit your conditions.

Height Adjustment Unit PF-P22 is only available in some areas.

9

Paper Feed Unit PF-P21/PF-P20

Paper Feed Unit PF-P21 can contain up to 500 legal-size sheets.

Paper Feed Unit PF-P20 can contain up to 500 A4-size sheets.

bizhub C4000i can be installed in up to two levels, and bizhub C3300i can be installed in up to a single level.

Paper Feed Unit PF-P20 is only available in some areas.

10

Desk DK-P05/DK-P04

Used to install this machine on the floor.

This unit is referred to as Desk in the manual.

Desk DK-P04 is only available in some areas.

11

Clean Unit CU-202

Collects small particles (UFP) generated in this machine to prevent them from escaping this machine.

Clean Unit CU-202 is only available in some areas.

1

Local Interface Kit EK-P08

Install this unit when using the voice guidance function, Authentication Unit AU-102, Authentication Unit AU-201S, or Upgrade Kit UK-221.

The speaker and USB port are added.

This unit is referred to as the Local Interface Kit in the manual.

2

Local Interface Kit EK-P09

Install this unit when using the voice guidance function, Authentication Unit AU-102, Authentication Unit AU-201S, Upgrade Kit UK-221, or the connection function with a Bluetooth LE-compatible iOS terminal.

The speaker, USB port, and receiving device for Bluetooth LE communication are added.

This unit is referred to as Local Interface Kit or Local Interface Kit (voice guidance / Bluetooth LE compatible).

3

Local Interface Kit EK-P10

Install this unit to link this machine with an NFC-compatible Android terminal.

A receiving device for NFC communication is added.

This unit is referred to as the Local Interface Kit (NFC compatible) in the manual.

4

Local Interface Kit EK-P11

Install this unit to use the remote diagnosis system.

Used to add an RS-232C port.

5

i-Option LK-114

Allows you to add the serverless pull printing function.

This option is only available in bizhub C4000i.

6

Upgrade Kit UK-221

Allows you to use this machine in a wireless network environment.

To install the Upgrade Kit UK-221, the Local Interface Kit EK-P08 or Local Interface Kit EK-P09 is required.

This unit is referred to as the Wireless LAN Interface Kit in the manual.

7

Mount Kit MK-P08

Required to have Authentication Unit AU-201S built in to the main unit.

8

Mount Kit MK-P09

Required to use the Clean Unit CU-202.

Mount Kit MK-P09 is only available in some areas.
