Adjusting the Touch Panel
Adjusting a position to tap the Touch Panel
If a Touch Panel key does not respond normally when tapped, the tap position may not be detected properly.

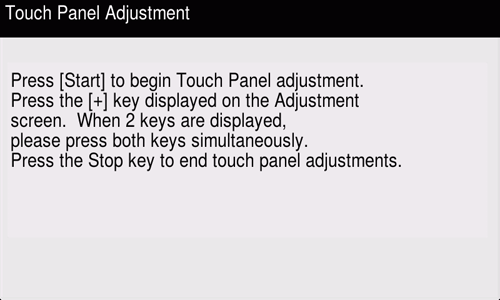

Tap [Accessibility] - [Touch Panel Adjustment].
Press the Start key.
Tap [+] on the screen.
If two [+] buttons are displayed, tap the second [+] while holding down the first [+].
To stop the adjustment, press the Stop key.
Tap [+] 10 times, then start adjusting a position gap.
Re-operate the screen that did not respond properly before adjustment, and check that the keying position is adjusted correctly.
After this procedure, if a keying error recurs, contact your service representative.
Adjusting the brightness of the Touch Panel
Adjust the brightness level of the Touch Panel.
Tap [Accessibility] - [Brightness Adjustment], and also select [Low] or [High] to adjust the brightness.
Continuous-tapping setting
Specify whether continuous tapping of the same key is detected as a double-tap operation.
Tap [Accessibility] - [Double tap setting].
Setting
Description
[Double Tap]
Detects continuous tapping of the same key as a double-tap operation.
You can change the double-tap detection interval at five levels (default: [Standard]).
Double-tap the box at the right of the screen enables you to check the current setting.
[Tap detection Limitation]
Inhibits the system from detecting the second and subsequent selections in the specified interval when the same key is tapped continuously.
When a user continuously touches a key in an involuntary manner, the system prevents it from being mistakenly detected as a double-tap operation.
Specify the interval to detect the second and subsequent taps (default: [0.1] sec.).
