Name and Function of Each Part in Main Unit

Front/side

No.

Name

Description

1

Control Panel

Used to configure various settings in this machine.

2

Power Connection

Connect the power cord to this inlet to supply power to this machine.

3

Bypass Tray

Used to print data on non-standard size paper or envelopes.

For details on the available paper, refer to Here.

4

Main Power Switch

Press this switch to turn the machine on or off.

5

USB Port (Type A) USB2.0/1.1

Used to connect an external memory unit (USB flash drive) to this machine.

6

Tray 1

Allows you to load up to 500 sheets.

For details on the available paper, refer to Here.

7

Mobile Touch Area

This area is used to associate this machine with an NFC-compatible Android terminal or an iOS terminal compatible with Bluetooth LE.

This item is available when the optional Local Interface Kit (Compatible with NFC) is installed.

8

Data Indicator

Flashes or lights up to indicate the data receiving status on this machine.

For details, refer to Here.

9

Output Tray

Outputs printed pages.

Rear side

No.

Name

Description

1

Ethernet (LAN) Port (1000Base-T/100Base-TX/10Base-T)

Connect to this port when using this machine as a network printer.

2

USB Port (Type B)

Connect to this port when using this machine as a USB-connected printer.

  • The network port of this product is following No.1 and No.2. A port is activated when a network port inserts a cable.

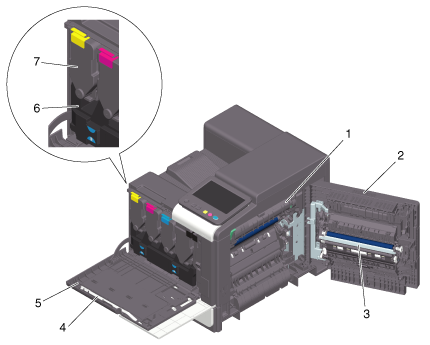

Inside

No.

Name

Description

1

Fusing Unit

Used to fuse toner to paper using heat and pressure.

2

Right Door

Open this door to clear a paper jam.

3

Paper Transport Unit

Transports paper. When performing 2-sided printing, this unit reverses paper.

4

Printhead Cleaner

Used to clean the surface of the Print Head Glass.

5

Front Door

Open this door to replace the Toner Cartridge or Waste Toner Bottle, and to clean the Print Head Glass.

6

Waste Toner Bottle

Used to collect used waste toners.

7

Toner Cartridge

This machine provides Toner Cartridge in four colors: cyan (C), magenta (M), yellow (Y), and black (K). A full-color image is created by combining the four toner colors.
