Name and Function of Each Part in Main Unit

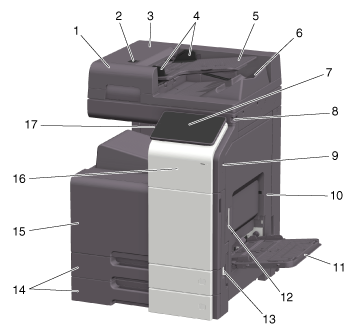

Front

This illustration shows the main unit with Reverse Automatic Document Feeder DF-714.

No.

Name

Description

1

Reverse Automatic Document Feeder

Automatically feeds and scans originals by page. This unit scans a 2-sided original by only requiring the paper be fed into the machine once without reversing.

This unit is referred to as ADF in the manual.

2

Left Cover Release Lever

Used to open the Left Cover.

3

Left Cover

Open the Left Cover when clearing a paper jam. Open the Left Cover when clearing a paper jam.

4

Lateral Guide

Adjust this guide along the width of the original.

5

Original Tray

Load the original face up in this tray.

6

Original Output Tray

The scanned original is fed out onto this tray.

7

Control Panel

Used to configure various settings in this machine.

8

Stylus Pen

Used to select a menu on the Touch Panel, or enter characters.

9

USB Port (Type A) USB2.0/1.1

Used to connect an external memory unit (USB flash drive) to this machine.

10

Right Door

Open this door to clear a paper jam.

11

Bypass Tray

Used to print data on irregularly size paper, thick paper, transparencies, postcards (4 6 (A6 Card)), envelopes, or label sheets.

For details on the available paper, refer to Here.

12

Right Door Release Lever

Used to lock the Right Door.

13

Main Power Switch

Press this switch to turn the machine on or off.

14

Tray 1, Tray 2

Allows you to load up to 500 sheets of plain paper.

For details on the available paper, refer to Here.

15

Front Door

Open this door to replace the Toner Cartridge or Waste Toner Box, and to clean the Print Head Glass.

16

Mobile Touch Area

This area is used to associate this machine with an NFC-compatible Android terminal or an iOS terminal compatible with Bluetooth LE.

17

Power key

Switches this machine to the Power Save mode.

For details on the Power key, refer to Here.

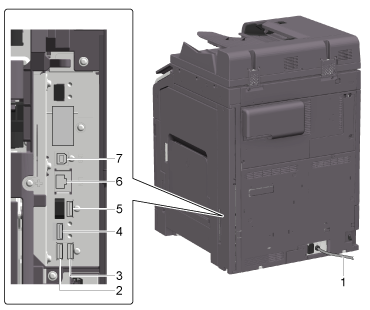

Side/rear

This illustration shows the main unit with Reverse Automatic Document Feeder DF-714.

No.

Name

Description

1

Power Cord

Used to supply power to this machine.

2

USB Port (Type A) USB2.0/1.1

Used to connect the FAX1 line (option).

3

USB Port (Type A) USB2.0/1.1

Used to connect the FAX2 line (option).

4

USB Port (Type C) USB3.0

Used to connect the Wireless LAN Interface Kit (option).

5

USB Port (Type A) USB2.0/1.1

Used to connect the Authentication Unit (option).

6

Network Connector (10Base-T/100Base-TX/1000Base-T)

Connect to this port when using this machine as a network printer or network scanner.

7

USB Port (Type B) USB2.0/1.1

Connect to this port when using this machine as a USB-connected printer.

  • The network port of this product is following No.6 and No.7. A port is activated when a network port inserts a cable.

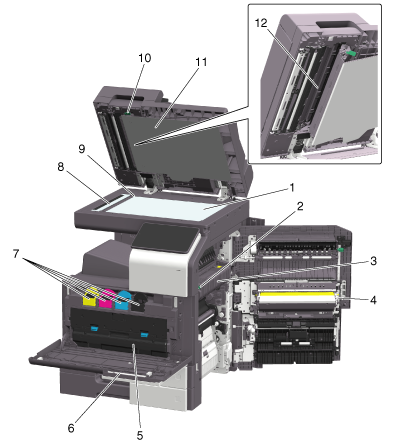

Inside

This illustration shows the main unit with Reverse Automatic Document Feeder DF-714.

No.

Name

Description

1

Original Glass

Used to load the original.

2

Fusing Unit Cover Lever

Used to clean a paper jam in the fusing unit.

3

Fusing Unit

Used to fuse toner to paper using heat and pressure.

4

Auto Duplex Unit

Used to reverse paper when performing 2-sided printing.

5

Waste Toner Box

Used to collect used waste toners.

6

Printhead Cleaner

Used to clean the surface of the Print Head Glass.

7

Toner Cartridge

This machine provides Toner Cartridge in four colors: cyan (C), magenta (M), yellow (Y), and black (K). A full-color image is created by combining the four toner colors.

8

Slit Scan Glass

Used to scan an original image when using the ADF.

9

Original Scale

Load the original along this scale. This scale is also used to measure the size of the loaded original.

10

Opening and Closing Guide

Lever that locks the guide to scan the back side of an original. Open this guide when clearing a paper jam or cleaning the Slit Scan Glass (back).

11

Original Pad

Fixes the loaded originals.

12

Slit Scan Glass (back)

Used to scan the back side of an original when using the ADF.
